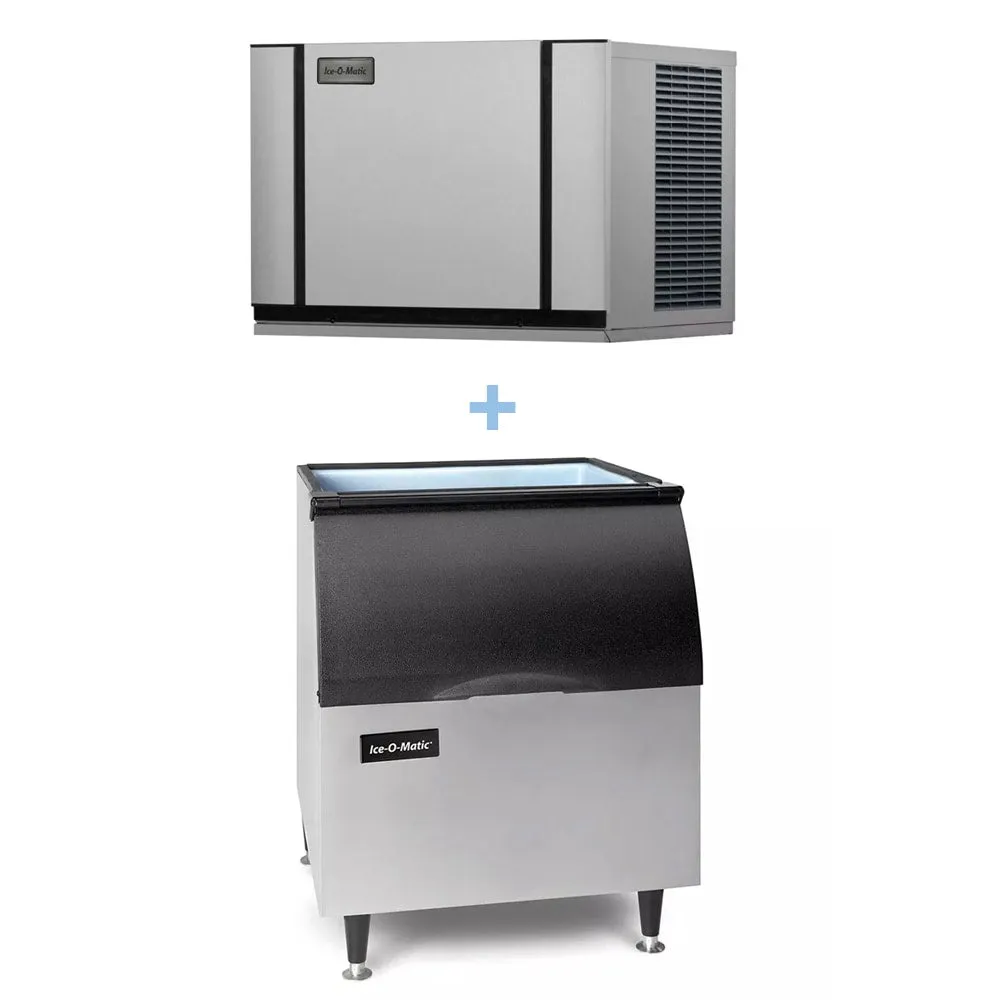

Ice-O-MaticCIM0330FA/B40PSDescription
Able to perform digital diagnostics. the Ice-O-Matic CIM0330FA/B40PS ice maker notifies users when cleaning is needed through its LED status lights. To streamline cleaning. the machine can self-sanitize and descale with the push of a button. It can produce as much as 313 pounds of ice each day under favorable conditions. and the matching bin can store as much as 344 pounds.
The Ice-O-Matic CIM0330FA/B40PS operates with an air-cooled system that features dual exhaust for improved heat management. Its condenser is self-contained. providing a compact footprint and simplifying installation procedures. To resist the growth of microbes. the unit is treated with an antimicrobial enhancement; its interior food zone is made of smooth plastic that doesn't have small crevices for bacterial residue to accumulate.
Ice Maker Details
- Part of the Elevation Series
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Produces full-size ice cubes
- Cube dimensions:78in. x78in. x78in.
- Air cooled
- Condenser is self-contained
- Dual exhaust system for hot air management
- Plastic food zone resists buildup of residue
- Dishwasher-safe pieces snap in and out for quick cleanup
- Interior parts feature PURE ICE antimicrobial defense
- LED smart display and notification lights
- Digital diagnostics with by Universal Smart Harness control board
- 1-touch controls for descaling and sanitizing save time when cleaning
- Recyclable interior parts and BPA-free plastic are environmentally friendly
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4.400 BTU/hour
Ice Bin Details
- 344-lb. capacity
- Top-hinged. slope-front door
- Insulated. corrosion-resistant polyethylene liner inside bin
- Rotocast aluminum exterior resists scratches and dents
- Designed with 6-in. legs that can be adjusted for improved stability
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 30 in. W x 31 in. D x 3712in. H
- 11 A. 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet:38-in. FPT
- Water outlet:34-in. FPT
- Electrical connection port:78-in. diameter
- Electrical connection junction box:78-in. diameter
