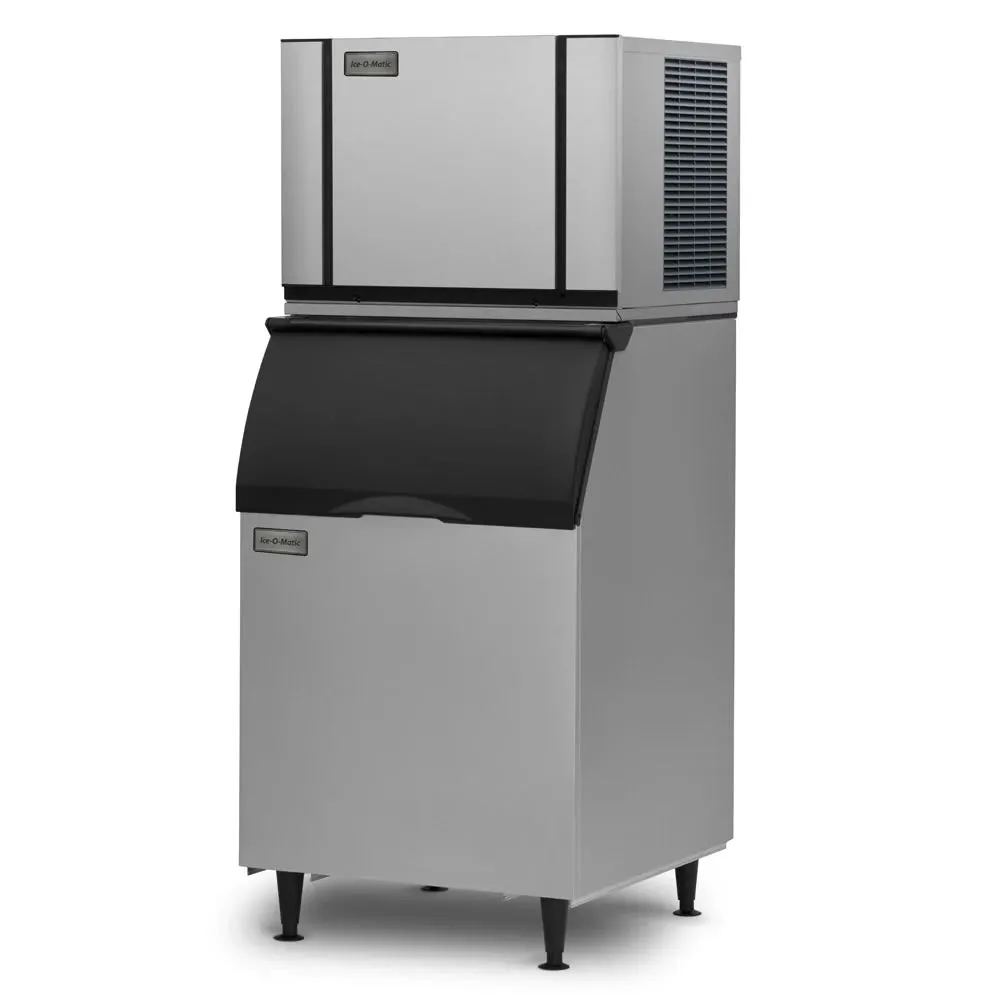

Ice-O-MaticCIM0430FA/B55PSDescription
To streamline installation. the Ice-O-Matic CIM0430FA/B55PS ice machine with bin has a self-contained condenser. It can produce as much as 435 pounds of ice daily. and the bin can store 510 pounds of ice for later use. For cleaning. employees can push a button to perform sanitizing and descaling. while the food zone components can be removed and placed in the dishwasher. Slowing the growth of bacteria. the unit is coated with PURE ICE antimicrobial.
For monitoring purposes. the Ice-O-Matic CIM0430FA/B55PS full-cube ice maker with bin has an LED screen that displays the unit's operating status. Offering the durability needed for repeated use. the bin is made of aluminum. The inside is lined with polyethylene to resist corrosion and is insulated to ensure ice doesn't melt quickly during storage. It's positioned on sturdy 6-inch legs for elevation.
Ice Maker Details
- Part of the Elevation Series
- 435-lb. daily ice production
- 320-lb. AHRI daily ice production at 70-90 degrees F
- Makes full-size cubes
- Full-size cube size:78in. W x78in. D x78in. H
- Self-contained. air-cooled condenser
- Dual exhaust discharges from the side and top
- PURE ICE antimicrobial agent slows bacterial growth
- LED display provides status updates
- 1-touch sanitizing and descaling
- Plastic food zone with dishwasher safe components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5.100-BTU heat transfer capacity
Ice Bin Details
- 510-lb. application capacity
- Top-hinged door with sloped front
- Lined with corrosion-resistant polyethylene
- Foam insulation prevents melting
- Exterior is durable aluminum
- Sits on 6-in. legs that can be adjusted
Dimensions & Utilities
- Ice maker dimensions: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin dimensions: 30 in. W x 31 in. D x 50 in. H
- 11 A. 5.43 kW
- 115 V/60 Hz/1 ph
