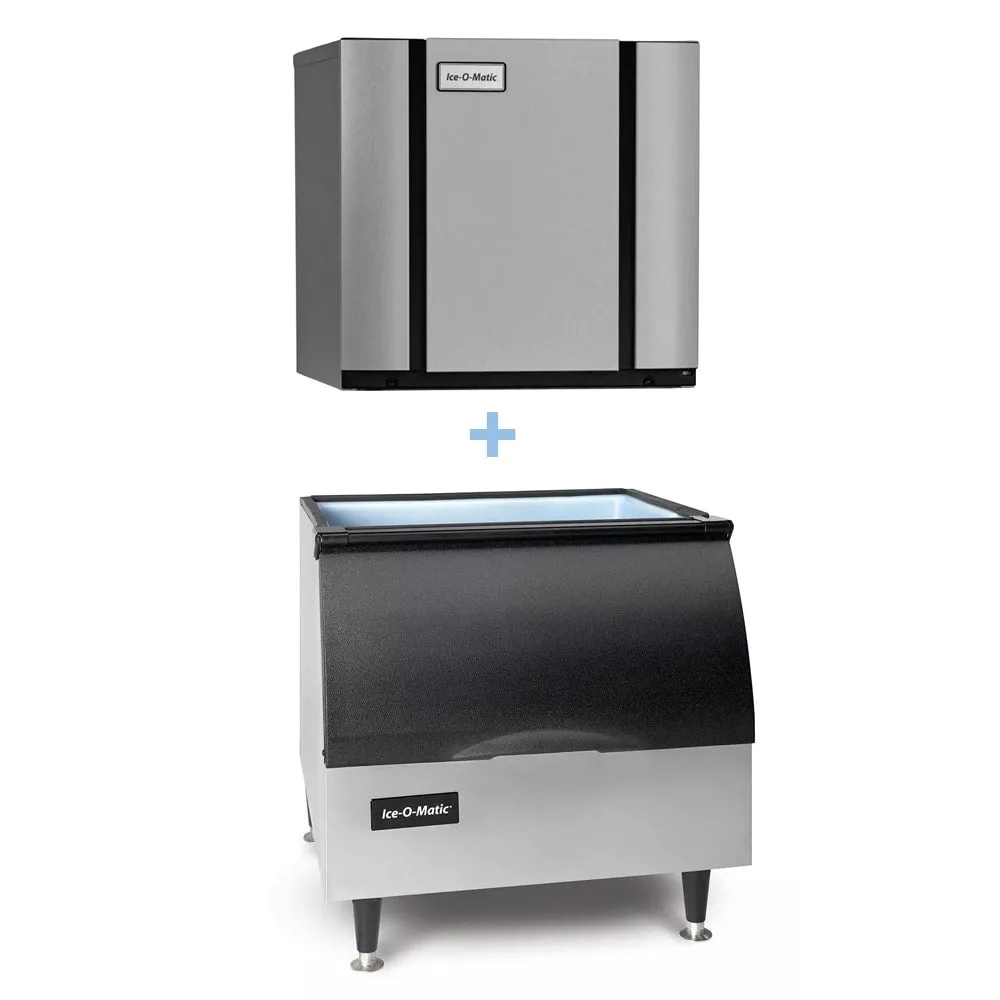

The Ice-O-Matic CIM0520FA/B25PP ice maker and bin has a plastic food zone to simplify cleaning and reduce potential surfaces where food matter could build. It makes full-cube ice. a common ice for beverages in a variety of establishments. To counteract exhaust obstruction. the maker head vents hot air through both the top and the side.

Well-suited for small-scale applications such as lobbies and waiting rooms. the Ice-O-Matic CIM0520FA/B25PP air-cooled ice machine and bin can hold 242 pounds of ice. Insulation in the bin strengthens its structure while also boosting its ability to hold in cold and preserve ice. A set of 6-inch adjustable legs help the unit balance on sloped surfaces.

Ice Maker

• Part of the Elevation Series
• 561-lb. maximum daily ice production
• 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces full-cube ice
• Narrow space-efficient design
• Dual exhaust system discharges air from top and side to reduce potential airflow blockage
• Smart LED light provides status and cleaning notifications
• PURE ICE antimicrobial defense
• 1-touch descaling/sanitization
• Plastic food zone decreases food buildup areas
• Snap-out components are safe in the dishwasher
• Convenient universal Smart Harness control board
• Full-cube size:⁷₈in. x⁷₈in. x⁷₈in.
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 6.252-BTU heat transfer capacity
• Ideal clearance: 6 in. for air intake and exhaust

Ice Bin

• 242-lb. bin capacity
• Sloped front door
• Polyethylene interior streamlines cleaning
• Rotocast exterior with aluminum finish
• Foam insulation improves chill retention
• 6-in. adjustable legs

Dimensions & Utilities

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A. 5.87 kW
• 115 V/60 Hz/1 ph

• 30 in. W x 31 in. D x 28 in. H
