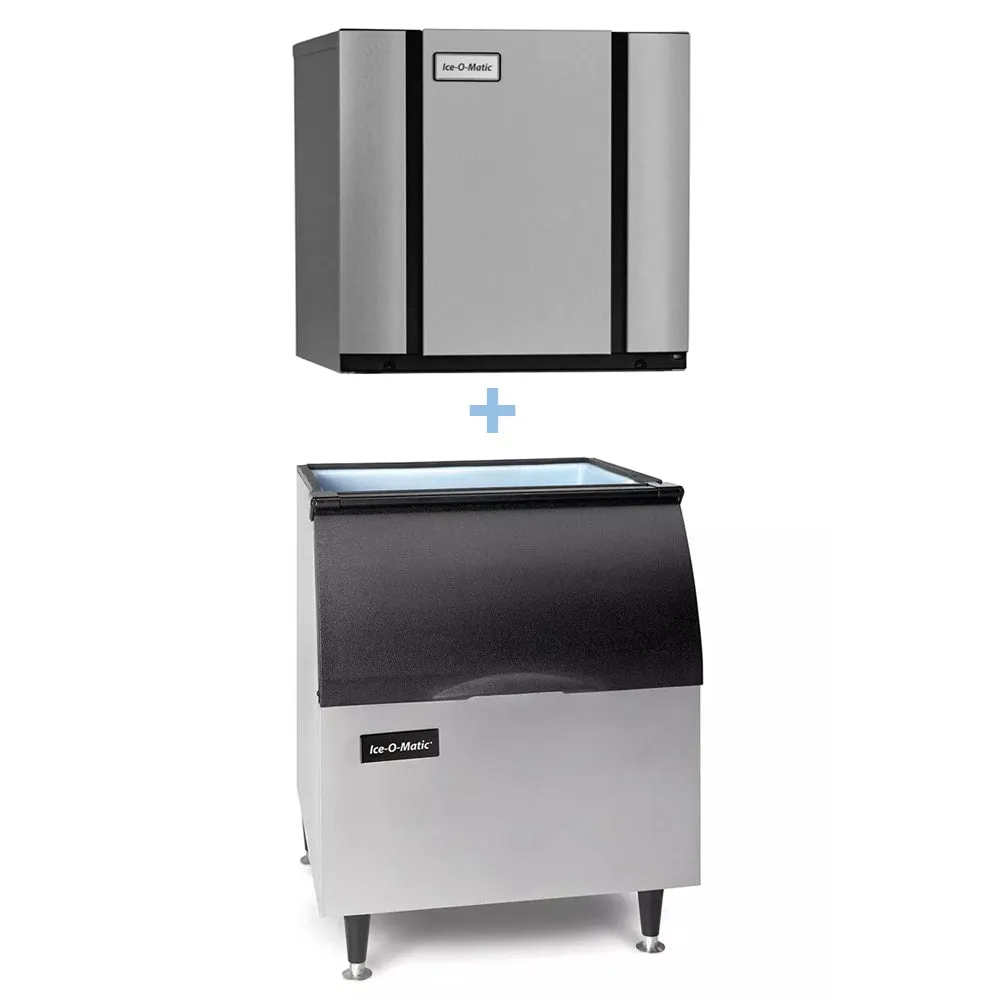

The Ice-O-Matic CIM0520HA/B40PS ice maker and bin makes half-cube ice. which is great because it cools drinks quickly. Decreasing potential exhaust obstruction. it's built with a dual exhaust system that expels heated air through side and top vents. Antimicrobial defense and one-touch descaling work in tandem to keep the interior of the ice machine clean and free of contaminant buildups.

The Ice-O-Matic CIM0520HA/B40PS air-cooled ice machine's bin is built with foam insulation. which strengthens the bin's structure and improves thermal retention to preserve ice for a lengthened period of time. It has a polyethylene interior to simplify cleaning for establishment staff. The bin is mounted on 6-inch legs that can be adjusted to balance the unit out on uneven floors.

Ice Maker

• Part of the Elevation Series
• 561-lb. maximum daily ice production
• 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces half-cube ice
• Narrow space-efficient design
• Dual exhaust system discharges air from top and side to limit airflow blockage
• Smart LED light notifies staff of machine state and cleaning requirements
• PURE ICE antimicrobial defense
• 1-touch descaling/sanitization
• Plastic food zone
• Snap-out dishmachine-safe components
• Universal Smart Harness control board
• Full-cube size:⁷₈in. x⁷₈in. x⁷₈in.
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 6.252-BTU heat transfer capacity
• Ideal clearance: 6 in. for air intake and exhaust

Ice Bin

• 344-lb. bin capacity
• Sloped front door
• Polyethylene interior optimizes bin cleaning
• Rotocast exterior with aluminum finish
• Foam insulation maximizes chill retention
• 6-in. adjustable legs

Dimensions & Utilities

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A. 5.87 kW
• 115 V/60 Hz/1 ph

• 30 in. W x 31 in. D x 37¹₂in. H
