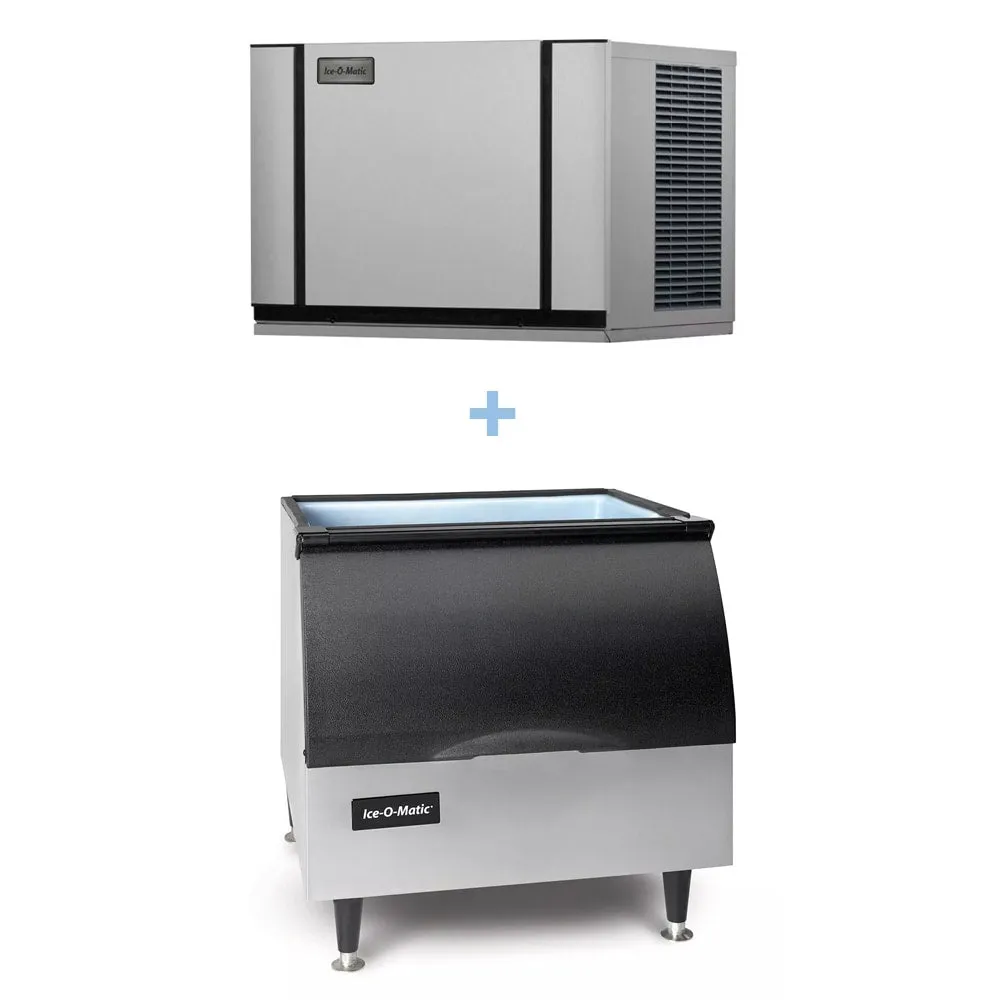

Ice-O-MaticCIM0530HA/B25PPDescription
Standing on 6-inch legs. the Ice-O-Matic CIM0530HA/B25PP ice maker's storage bin can be adjusted to ensure the unit remains level as it operates. The bin holds as much as 242 pounds of prepared ice at a time. and the ice maker head can produce 520 pounds of ice each day in ideal conditions. Useful in locations that serve high volumes of beverages. the half-cube ice produced by this unit is good for chilling drinks and blending into smoothies or frozen drinks such as margaritas.
The Ice-O-Matic CIM0530HA/B25PP ice machine head with bin is designed to reduce employee labor during operation. Its LED display makes it possible for employees to monitor the machine at a glance; its LED smart light notifies users when cleaning is required. During routine maintenance. users can remove the snap-in interior components and run them through a commercial dishmachine for cleaning. To promote sanitary use and prevent the spread of germs. the ice machine head is treated with antimicrobial protection.
Ice Maker Details
- Part of the Elevation Series
- 520-lb. maximum daily ice production
- 390-lb. AHRI-certified ice production
- Half-size ice cubes
- Cube dimensions:38in. x78in. x78in.
- Air cooled
- Self-contained condenser streamlines installation and operation
- Hot air is exhausted from top and side for improved efficiency
- Plastic foodzone has no small cracks to trap microbes
- BPA-free. removable components are warewasher safe for simple cleaning
- Enhanced with PURE ICE antimicrobial protection to reduce bacterial growth
- 1-touch. operable sanitizing and descaling processes
- Smart LED light communicates cleaning status
- LED display enhances visibility
- Universal control board with Smart Harness to configure multiple machines quickly
- Includes recyclable parts
- Ideal ambient temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal water pressure: 20-80 PSIG
- 6.252-BTU heat transfer capacity
Ice Bin Details
- 242-lb. capacity
- Rotocast aluminum exterior is lightweight and corrosion resistant
- Polyethylene interior liner insulated with foam
- Top-hinged. slope front access door
- Rests on 6-inch adjustable legs
- Multiple bin top sizes are available andsold separately
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 30 in. W x 31 in. D x 28 in. H
- 17.8 A. 5.87 kW
- 115 V/60 Hz/1 ph
- Ice maker potable water inlet:38-in. FPT
- Ice maker water outlet:34-in. FPT
- Electrical connection port:78-in. dia.
- Electrical connection junction box:78-in. dia.
