Product Details
＋

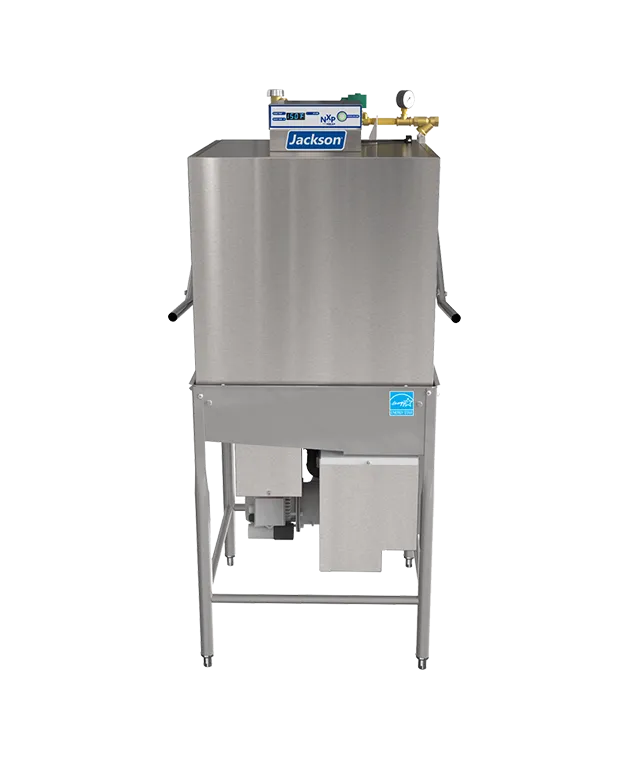

NXP-HTD
Meet the NXP-HTD. It's a powerful. single-cycle high temperature sanitizing door-type that provides Clean the First Time results! The NXP-HTD features automatic tank fill. door-actuated start. a built-in booster heater with Sani-Sure final rinse system. digital temperature display. delime cycle. interchangeable upper and lower wash/rinse arms. vent fan control. and a generous 17.25 vertical chamber clearance.
- High temp. electric tank heat
- Cleans 63 racks per hour
- Only 0.89 gallons of water per rack
- Single 57-second automatic cycle
- 70 F rise built-in booster heater
WIDTH
30.625
DEPTH
29
HEIGHT
64
WEIGHT
263 LB
CLEARANCE
17.25
- Electric tank heat
- Cleans 63 (58)* racks per hour using only 0.89 gallons of water per rack
- Built-in booster heater with Sani-Sure final rinse system ensures
proper sanitization is achieved every cycle - Single 57-second automatic cycle
- Automatic tank fill
- Door-actuated start
- Digital temperature display
- Delime cycle
- 17.25 vertical chamber clearance
- Interchangeable upper and lower wash/rinse arms
- 1 hp stainless steel wash pump motor
- Vent fan control shuts the vent fan off when machine is idle.
saving energy - Top mounted controls for ease of operation
- Large scrap basket
- Single point connections for all utilities
- Field convertible from straight-through to corner and
vice versa (kit required) - Field phase conversion capable (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Adjustable bullet feet
- Uses standard 20 x 20 (508 mm x 508 mm) racks
- 1-year parts and labor warranty
