The STG Spec series refrigerator/freezer units feature an exterior with a stainless steel door and matching aluminum sides. an interior with aluminum side walls and back. and a stainless steel floor and ceiling and it comes with heavy-duty PVC-coated wire shelves (3 per section).
This refrigerator/freezer is proudly made in the USA. UL EPH classified. and it is UL listed in the United States and Canada for safety. This refrigerator/freezer rolls smoothly on a set of 5 diameter plate casters that have locks on the front set.
The STG1DT-2HS-HC reach-in refrigerator/freezer is an electric unit that runs at 115 Volts. 60 Hertz. 1-phase. and 3.7 Amps for the 1/10 HP refrigerator compressor and the 1/4 HP freezer compressor. The unit comes included with a 9 ft power cord with a NEMA 5-15P plug.
This refrigerator/freezer is insulated with Ecomate high-density CFC-free foamed-in-place polyurethane that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
There are 2 self-contained capillary tube refrigeration system top-mounted in this reach-in refrigerator/freezer that uses R290 Hydrocarbon refrigerant for the refrigerator (top) and the freezer section (bottom). This refrigerator/freezer unit maintains temperatures between 33 to 38 degrees F in the refrigerator section (top) and holds -10 degree F in the freezer section (bottom).

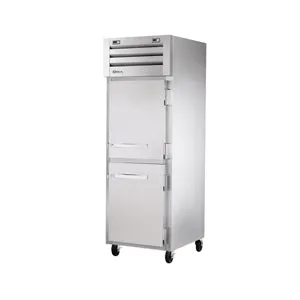

The STG1DT-2HS-HC is the Spec series Dual-Temp 1-section 27 1/2 wide reach-in refrigerator/freezer from True with 2 half-height solid stainless steel doors with bolt-style door locks and cam-lift hinges. LED interior lighting. and digital temperature controls.
True STG1DT-2HS-HC Features
- Spec series reach-in refrigerator/freezer
- Number of Sections: 2
- Number of Doors: 4
- Door Type: Half-height solid stainless steel
- Bolt-style door locks
- Cam-lift door hinges
- Exterior Material: Stainless steel door. Aluminum sides
- Interior Material: Aluminum side walls and back. Stainless steel floor and ceiling
- Shelf Material: Heavy-duty PVC-coated wire
- Number of Shelves: 3
- Insulation: Ecomate High-Density Polyurethane
- 2 top-mounted self-contained capillary tube refrigeration systems
- Refrigerant: R290 Hydrocarbon
- Digital temperature controls
- LED interior lighting
- Refrigerator Temperature Range: 33 to 38 degrees F
- Frozen Temperature: -10 degrees F
- Electrical specifications: 115 Volts. 60 Hertz. 1-phase. and 3.7 Amps
- 1/10 HP refrigerator compressor
- 1/4 HP freezer compressor
- 9 ft power cord with NEMA 5-15P plug
- 5 diameter plate casters (locks on front set)
- Made in the USA
- UL EPH classified
- UL listed in the United States and Canada
- NSF/ANSI Standard 7 compliant for open food products
True STG1DT-2HS-HC Benefits
- High-capacity factory balanced self-contained refrigeration system
- Durable stainless steel construction
- Uses environmentally-friendly high-density CFC-free polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP)
Overall Dimensions:
Height (with 5 casters): 82 3/4
Height (without casters): 77 3/4
Width: 27 1/2
Depth: 33 3/4
| Ship Weight | 480 lb |
| Manufacturer | True |
| Model Number | STG1DT-2HS-HC |
| Manufacturer Part # | STG1DT-2HS-HC |
| Hazardous Material | No |
| Oversized Shipping | No |
| Type | Commercial Dual-Temp Refrigerator / Freezers |
| Height (With 5 Casters) | 82 3/4 Inches |
| Height (Without Casters) | 77 3/4 Inches |
| Width | 27 1/2 Inches |
| Depth | 33 3/4 Inches |
| Exterior Material | Stainless Steel |
| Interior Material | Aluminum |
| Side Material | Aluminum |
| Color | Silver |
| Unit Type | Dual-Temp Refrigerator / Freezer |
| Cabinet Type | Reach-In |
| Brand Line | Spec-Line |
| Number of Sections | 1 |
| Door Type | Solid |
| Door Height | Half-Height |
| Number of Doors | 2 |
| Door Style | Swing |
| Door Hinge Type | Cam-Lift |
| Door Lock Type | Bolt-Style |
| Control Type | Digital Temperature Control |
| Refrigerator Temperature Range | 33 to 38 Degrees F |
| Freezer Temperature | -10 Degrees F |
| Insulation | Ecomate High-Density Polyurethane |
| Shelf Material | Heavy-Duty PVC-Coated Wire |
| Shelves Per Section | 3 |
| Total Number Of Shelves | 3 |
| Refrigerant | R290 Hydrocarbon |
| Made In USA | Yes |
| UL EPH Classified | Yes |
| UL Listed | Yes |
| Interior Lighting Type | LED |
| Compressor Location | Top-Mount |
| Power | Electric |
| Voltage | 115 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 3.7 |
| Refrigerator Horsepower | 1/10 HP |
| Freezer Horsepower | 1/4 HP |
| Power Cord Length | 9 ft |
| Plug | NEMA 5-15P |
