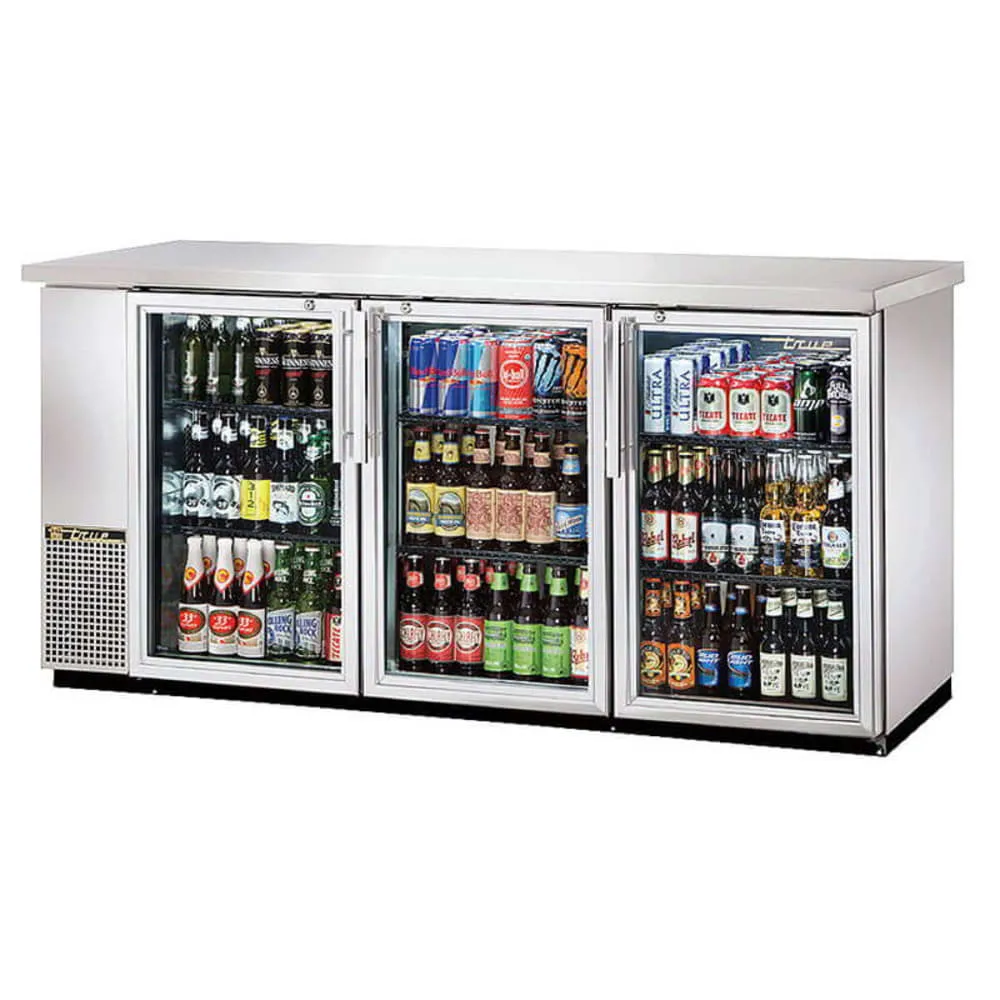

To withstand daily use. the True TBB-24-72G-S-HC-LD three-section bar refrigerator has a stainless steel front. sides. and top. Its rust-resistant top functions as a workspace for preparing drinks or running equipment. On the back. aluminum blends in seamlessly with the rest of the unit. Its doors are made of thermal-insulated glass. which shows the cabinet's contents to customers or staff. LED lights further enhance visibility in a variety of room lighting. Black PVC-coated shelves support items and help colored product pop. and the stainless steel interior floor features a lip to prevent leaks.

The True TBB-24-72G-S-HC-LD back bar cooler maintains steady temperatures from 33 to 38 degrees Fahrenheit with a capillary tube system. Environmentally friendly R290 hydrocarbon refrigerant courses through the tubes. creating cool temperatures. To block out heat. high-density polyurethane insulation is in the walls. and the doors have strong-sealing magnetic gaskets. Electronically commutated condenser and evaporator fan motors blow a consistent amount of cold air without producing much heat or using much energy.

With a consistently clean condensing coil surface. this unit can keep items cool without using as much energy. So every time the compressor turns on. the condensing fan motor blows in a reverse direction for 20 seconds. eliminating buildup of dirt and dust. Though this method is effective to improve coil function. preventive maintenance is still required to ensure it is working correctly. For maintenance and cleaning. this slide-out system can be accessed from behind the grille.

Product Details

• Can accommodate (105) 6-packs of 12-oz. cans or 3 half-barrel kegs
• 6 wire shelves coated with PVC
• Shelves come with clips and adjust on¹₂-in. increments
• LED lighting increases product visibility
• Locks secure contents
• Temperature holding range: 33-38 degrees F
• R290 hydrocarbon refrigerant and capillary tube system
• Fans generate a low amount of heat and consume little energy
• Condensing coil cleaned with reverse condensing fan motor technology when compressor turns on
• Condenser slides out from behind the grille

Durable Construction

• Stainless steel exterior and countertop provide rust and dent resistance
• Aluminum back blends into unit
• Steel frame rail helps prevent warping
• Floor is stainless steel with a¹₂-in. lip to catch messes
• Interior walls are thick-cut galvanized steel
• Polyurethane insulation and door gaskets keep out heat
• Swing doors have thermal-insulated glass to retain cold air
• Door threshold is protected against scrapes and dings from loading product

Dimensions & Specifications

• Right and left shelves: 19 in. W x 16¹₄in. D
• Center selves: 19⁵₈in. W x 16¹₄in. D
• Overall: 73¹₈in. W x 26⁷₈in. D x 35⁵₈in. H
• 2.7 A.¹₄HP
• 115 V/60 Hz/1 ph. 7-ft. cord with a NEMA 5-15P plug

True Refrigeration TBB-24-72G-S-HC-LD Specifications
