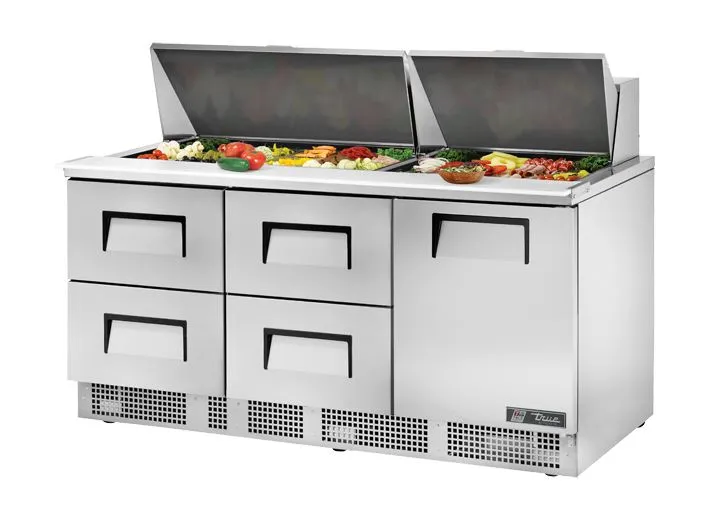

True RefrigerationTFP-72-30M-D-4Description
The True TFP-72-30M-D-4 prep table includes 30 sixth-size food pans to hold fresh ingredients in the refrigerated prep area that is covered by foam-insulated steel lids. protecting food freshness and maintaining the energy efficiency of the equipment. A factory-balanced. capillary tube refrigeration system equipped with a forced air system ensures products held in the pans are kep
t between 33 and 41 degrees Fahrenheit depending the temperature set by the operator. Flow of R134A refrigerant is regulated by a tube system.
The base of the True TFP-72-30M-D-4 food prep unit accommodates four full-size food pans. one in each stainless steel drawer. and the door section of the refrigerator contains two PVC-coated shelves that are adjustable in12-inch increments. Those shelves can be used to store bulk goods. condiments. and other ingredients that need to be kept at food-safe temperatures. To move the unit. 212-inch-diameter castors are mounted to the bottom.
Product Details
- 8-in.-deep. polyethylene cutting board provides a sanitary work surface
- Foam-insulated lid and hood maintain energy efficiency and food freshness
- 30 sixth-size food pans are included to hold ingredients in countertop prep area
- Cabinet has stainless steel front. top. and ends with a GalFan-coated steel back
- Clear-coated aluminum liner
- Insulated with foamed-in-place polyurethane
- 212-in.-diameter castors enable unit to be wheeled in and out
- Solid state electronic controls can be accessed on back of unit
Refrigeration System
- Temperature holding range: 33-41 degrees F
- Evaporator fan motor and large fan blades efficiently move a high volume of air
- R134A refrigerant is controlled by a self-contained capillary tube system
- Condensing unit can be accessed through back for service and maintenance
- Epoxy-coated evaporator resists corrosion
Door and Drawers
- Door is finished with a stainless steel exterior and aluminum liner
- Drawers are built with stainless steel facings. liners. slides. and rollers
- Each drawer accommodates 1 full-size food pan and 3 ninth-size pans(pans sold separately)
- 12-in. recessed handles are permanently attached
- 2 PVC-coated shelves are adjustable in12-in. increments
- 1-piece magnetic gaskets create an airtight seal
Dimensions & Utilities
- Pan size: 678in. L x 614in. W x 4 in. D
- Overall: 7218in. L x 3312in. D x 4612in. H
- 5.1 A.13HP
- 115 V/60 Hz/1 ph. 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TFP-72-30M-D-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Cutting Board Depth (in) | 8 |
| Depth (in) | 33.5 |
| Door Type | Solid |
| Front Access | Door/Drawer |
| Height (in) | 46.5 |
| Hertz | 60 |
| Number of Drawers | 4 |
| Sections | 3 |
| Type | Mega Top |
| Use | Sandwich/Salad |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 72.13 |
| Series | TFP Series |
| Refrigerant | R-134a |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Left |
| Includes | Food Pans |
| Max Pan Depth (in) | 4 |
| Weight | 635.00 |
