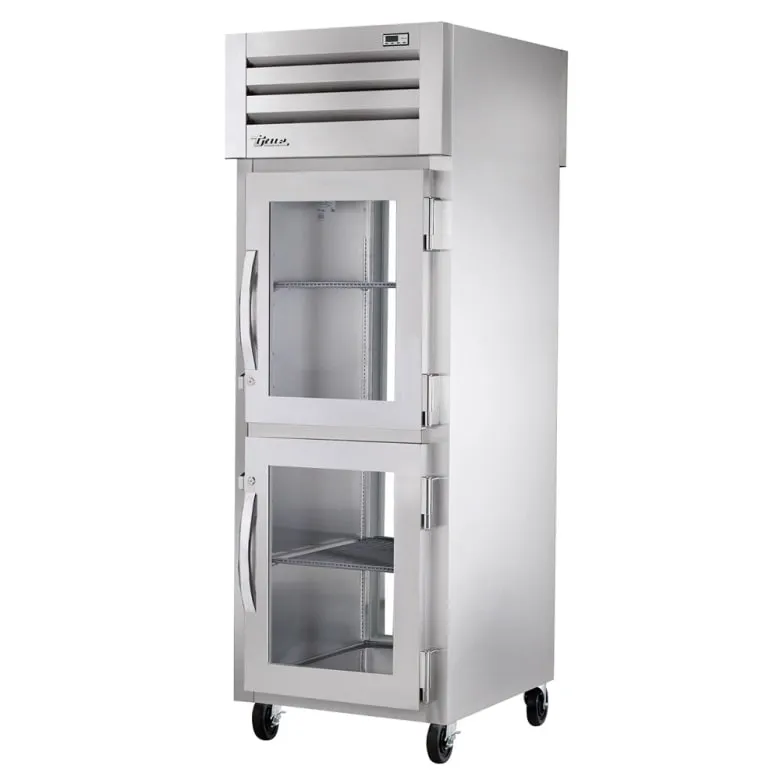

Using eco-friendly R290 hydrocarbon refrigerant. the True STR1RPT-2HG-1G-HC Spec Series pass-thru refrigerator maintains a set temperature between 33 and 38 degrees Fahrenheit. Refrigerant courses through the capillary tubes. which control the flow. The unit's evaporator and condenser fans push air consistently so that products are evenly cooled. Instead of staying in one area. air in the cabinet flows through the wire shelves. Since the refrigeration system rests on top. it does not take up interior space. This unit has electronic controls and a digital temperature display.

When this unit's compressor is turned on. the fan motor blows in a reverse direction for 20 seconds. This mechanism helps remove buildup of dirt and debris from the condensing coil. enabling it to operate more efficiently. using less energy and keeping products at the intended temperature more easily. Preventative maintenance should continue to be incorporated for best results.

The True STR1RPT-2HG-1G-HC pass-thru refrigerator has a durable. rust-resistant stainless steel construction. To add structure. polyurethane insulation is foamed in the walls. Magnetic gaskets seal the doors and keep cold air contained. and LED lighting enables users to see in the cabinet when grabbing goods. Each door is equipped with a bolt lock and a durable metal handle. When staff are stocking items. the doors stay open at 120 degrees. but they will self-close before this point to keep cold air from escaping. To facilitate cleanup. the door gaskets can be removed without tools. and the castors. which have a locking front pair. enable the unit to move so that staff can sweep the floor.

Product Details

• Part of the Spec Series
• Durable stainless steel interior and exterior
• High-density polyurethane insulation and door gaskets keep cold air inside
• Door gaskets are removable for cleaning
• 3 chrome-plated wire shelves organize contents
• LED lighting ensures stored goods are visible
• Temperature is shown in Fahrenheit or Celsius on exterior display
• Electronic controls
• 5-in.-diameter castors provide mobility
• Front two castors have locks

Pass-thru Doors

• Glass doors provide access and visibility on both sides
• Half front doors and full rear door
• Thermal-insulated. double-pane glass keeps heat out
• Self-close with cam-lift hinges
• Stay open past 120 degrees for stocking
• Handles are made of heavy-duty metal
• Bolt-style locks protect contents

Refrigeration System

• Temperature holding range: 33-38 degrees F
• Uses environmentally friendly R290 hydrocarbon refrigerant
• Self-contained capillary tube system simplifies maintenance
• Evaporator and condenser have efficient fan motors that save energy
• Fan motor reverses for 20 seconds upon compressor start up
• Evaporator's epoxy coating provides corrosion protection
• Mounted over the cabinet to increase storage space

Dimensions & Utilities

• Shelves: 26⁵₁₆in. W x 21⁹₁₆in. D
• Overall: 27¹₂in. W x 39⁷₁₆in. D x 84¹₈in. H
• 3.8 A.¹₄HP
• 115 V/60 Hz/1 ph. 9-ft. cord with a NEMA 5-15P plug
