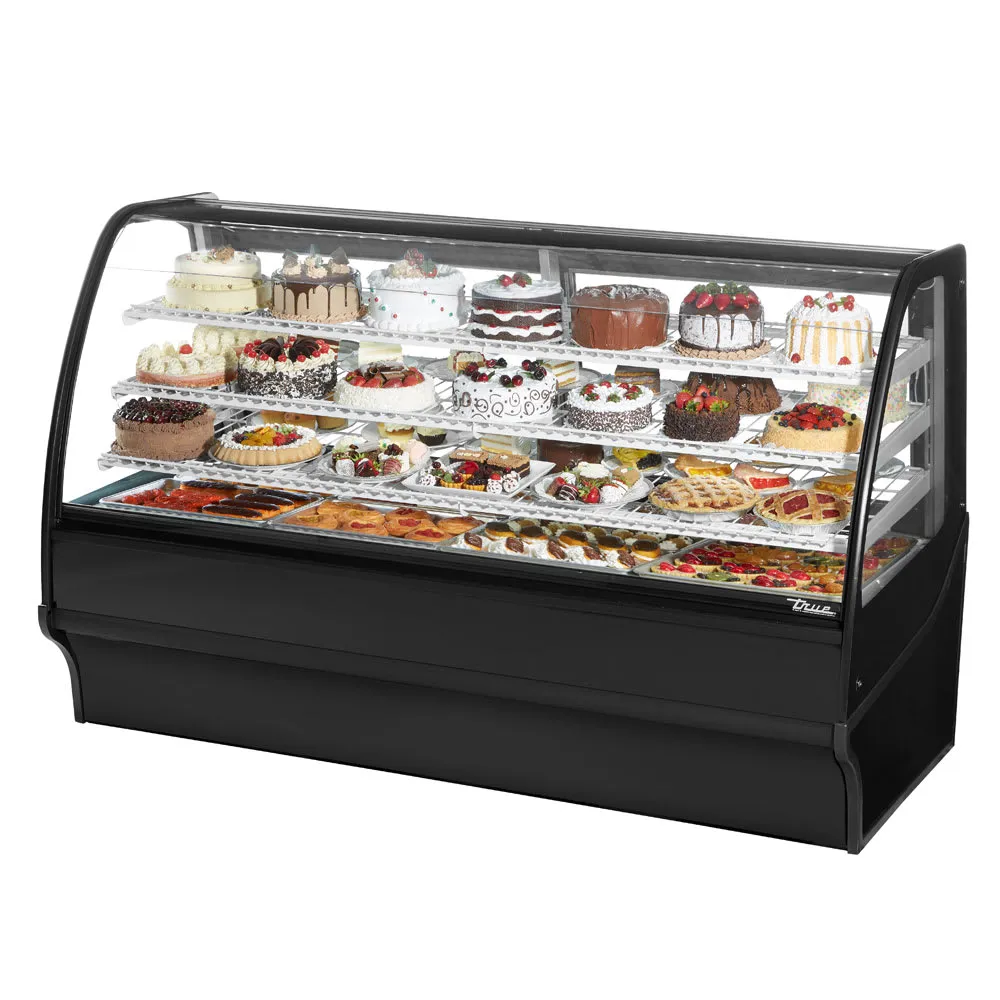

True RefrigerationTDM-R-77-GE/GE-B-WDescription
The True TDM-R-77-GE/GE-B-W full-service bakery case shows off baked goods through curved front glass and glass ends. and LED lights shine in the bright white interior to enhance visibility and improve the presentation of displayed items. Three shelves. which are adjustable to accommodate different items. are included with the unit and made of wire that encourages air to flow all around the product. Each shelf can hold 150 pounds. and the entire unit can hold eight 18-inch by 26-inch pans and (12) 18-inch by 26-inch pans. Staff members can reach into the case from the rear though a sliding glass door with a 12-inch aluminum handle. retrieving baked goods for customers.
The refrigeration system in this True TDM-R-77-GE/GE-B-W bakery display case uses eco-friendly R290 hydrocarbon refrigerant to keep the temperature at the right level. Depending on the application. operators can set the temperature on a level between 33 and 38 degrees Fahrenheit on the electronic controller. If the system has an operating issue. the condenser conveniently slides out for maintenance access.
Product Details
- Can accommodate (8) 18-in. x 26-in. pans and (12) 18-in. x 12-in. pans(sold separately)
- 3 wire shelves are adjustable to suit any application
- Each shelf can hold 150 lbs.
- LED case lights provide visibility to enhance product presentation
- Curved glass front and ends showcase baked goods
- Front glass swings up to provide clear product access
- Sliding rear glass doors smoothly open and close for employee access
- 12-in. aluminum door handles
- White powder-coated interior brightens the display
- Black-powder-coated exterior fits into most settings
- Foamed-in-place polyurethane insulation keeps ambient air out
- Electronic temperature control
- Temperature holding range: 33-38 degrees F
- Environmentally friendly R290 hydrocarbon refrigerant
- Condensing unit has a convenient slide-out design
- Leg levelers stabilize on uneven floors
Dimensions & Utilities
- 7714in. W x 39 in. D x 4918in. H
- 12 A.12HP
- 115 V/60 Hz/1 ph. 8-ft. cord with a NEMA 5-15P plug
True Refrigeration TDM-R-77-GE/GE-B-W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Full Service |
| Color | Black |
| Depth (in) | 39 |
| Design | Curved |
| Door Type | Sliding |
| Height (in) | 49.13 |
| Hertz | 60 |
| Number of Levels | 4 |
| Refrigeration Type | Refrigerated |
| Shelving Type | Wire |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 77.25 |
| Series | TDM Series |
| Phase | 1 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Weight | 845.00 |
